7 Inch Flexible Capacitive Multi Touch Foil Film 150mm*88mm

Product Categories
Sinotectronics Inc.
Contact Now

7 Inch Flexible Capacitive Multi Touch Foil Film 150mm*88mm

  • 1
  • 2
  • 3

Brand Name : Master Touch

Model Number : MST-MCW-TFB-7-STM

Place of Origin : Suzhou, Jiangsu, China

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000~100000pcs/month

Delivery Time : 5-8days

Packaging Details : 55*14*14cm Paper Tube

Product name : Pcap Touch Foil

Controller : STM

Material : PET Film+OCA+Micro Copper Wire

Touch point : 10

View Area : 7 inch (customized)

Application : Shopping Window/Signage/Industrial Touch Panel, etc.

Color : Transparent

Certification : RoHS, CB, ISO9001, ISO 9001:2000, ce, Reach, EMC

Touch Technology : Projected Capacitive

Contact Now

Master Touch 7 Inch Flexible Capacitive Multi Touch Foil Film

1. Product Description

MST Touch Foil, with micro copper wire matrix sensing technology, plotting the Φ10~15micron copper wire on the PET film, all micro copper wire materials are imported from Germany and PET Film manufactured in Japan. SNT touch foil cansense human finger touch accurately through non-conductive substrate, and position the touch precisely via capacitance coupling. At present, Sinotectronics are providing to the market with 3 series of touch foils to satisfy different market demand.

2. Technical Datasheet

Part No.: MST-MCW-TFB-7-STM
BOM Code: 1.11.007.02.0000
Project Code: M007B
Structure: Film+Micro Copper Wire+Film
Copper Wire Diameter: 15 microns
Base Material: PET Film
Controller IC: STM Series
Driver Type: Driver-free, plug-n-play
Communication Interface: USB2.0/3.0
Working Voltage: 5V
Standard USB Cable Length: 1,500mm
Thru-Glass Capability: Max. 6mm
Screen Ratio: 16:9
Foil Size: 168.49*109.95mm
Active Area: 150*88mm
Controller Size: 87.0*47.0mm
FPC direction: Long side
Light Transmittance ≧89%
Lamination Method: Wet Lamination (OCA)
Lamination Substrate: Glass/Acrylic/PMMA or other non-metallic material
Inductive method Improved projected capacitive technology
Touch accuracy ±1mm
Touch Points 1~12 points (adjustable)
Calibration method Automatic
Response time <10ms
Frame scan frequency 120FPS
Lifetime 9 Years
Temperature Range -15℃ to + 75℃
Working Environment 0~ 95%RH(Unaffected by condensation)
OS compatibility Windows XP, Windows 7, Windows 8, Windows10 (32 / 64)
MAC OS X Lion
Linux (Kernel version above 3.8)
Above Android 4.0 (Kernel version above 3.1)
EMC EN 61000-6-1:2007, EN 61000-6-3:2007+A1:2011
Power Consumption <0.5W
*This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions:(1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

3. Drawing

7 Inch Flexible Capacitive Multi Touch Foil Film 150mm*88mm

4. Details

7 Inch Flexible Capacitive Multi Touch Foil Film 150mm*88mm

5. Advantages of MST Touch Film

1. Light in Transportation 8. Work with projection film
2. Easy DIY Lamination 9. Cost-effectiveness
3. Smaller gap lamination 10. MOQ (Minimum Order Quantity)/Unlimited Quantity
4. Water-proof function (ST Series) Water-proof, Dust-proof, Vandal proof 11. Flat Design; Narrow Bezel; Attractive Appearance
5. Thick glass penetration (Max. 10-15mm) 12. Outdoor Application
6. Lowest surface resistance 13. Customized size Varies from 2 to 150 inch
7. Big size capacitive touch requests: up to: 4.2*1.35m (L*H) 14. Long life for both industrial and consuming level products application

6. Application

Interactive Shopping Window Outdoor Digital Signage
Industrial Touch Panel Interactive Black/White Board

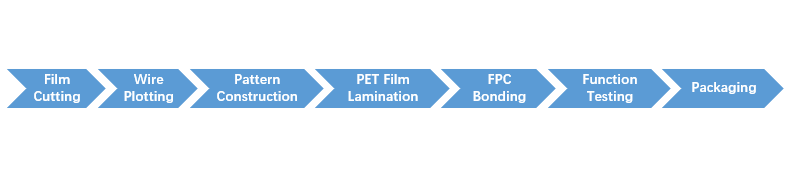

7. How is a touch foil made?

7 Inch Flexible Capacitive Multi Touch Foil Film 150mm*88mm

7 Inch Flexible Capacitive Multi Touch Foil Film 150mm*88mm

7 Inch Flexible Capacitive Multi Touch Foil Film 150mm*88mm

8. How does the touch foil work?

7 Inch Flexible Capacitive Multi Touch Foil Film 150mm*88mm

Touch Foil without touch: Voltage is even;

Touch with finger: Voltage will increase.

7 Inch Flexible Capacitive Multi Touch Foil Film 150mm*88mm

9. FAQ

7 Inch Flexible Capacitive Multi Touch Foil Film 150mm*88mm
