15.3mm Thick 3.3V EETI IC 15'' Touch Panel Bonding With LCD

Brand Name : Master Touch

Model Number : MST-TMS-15-DV

Place of Origin : Suzhou, Jiangsu, China

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000~100000 pieces/Month

Delivery Time : 5-8 days

Packaging Details : carton

LCD Model : DV150X0M-N10

Size : 15''

Touch IC : EETI

TFT thickness (mm) : 10

TP thickness (mm) : 4.3

Total thickness (mm) : 15.3

Contact Now

Master Touch Simply Use 15'' Touch Panel Bonding with LCD Model

1. Product Description

Master Touch 15'' Touch Panel Bonding with LCD Model is the lamination of touch panel and the LCD module. That is, simply use glue to laminate the touch screen and the four sides of the LCD screen, so there will be an air layer between them. But the advantage is that the lamination is simpler, the process is more mature, the yield is more stable, and the cost is lower.

2. Genaral Specification

2.1 LCD

Model DV150X0M-N10
Size 15 inch
Resolution 1024(RGB)×768 [XGA] 85PPI
Luminance 350 (Typ.)
Contrast 1000 : 1 (Typ.)
Viewing Angles 89/89/89/89 (Typ.)(CR≥10)
Signal System LVDS (1 ch, 8-bit) , terminal , 20 pins
Operating frequency 60Hz
Driving Voltage 3.3 V (Typ.)

TFT thickness

 10mm

2.2 Touch Panel

Outline Dimension 326.5*253.5 mm
View Area 305.13*229.1 (15 inch) mm
TP thickness 4.3 mm
Total 15.3 mm

Touch IC

 EETI80W46 --
Number of touchpoint 10 points
Number of button -- -

Interface information driven plate

 USB -
The active information -- --
The type of Bonding with LCD Frame bonding
Operation Temperature -20℃~70℃ ℃

Storage

(cannot exceed 6 months)

Temperature: 23±3℃ (Before installation)

Humidity:40%~70%RH

 ℃
Temperature: -30~80℃ (After installation) ℃

3. Reliability

Item Specifications Remark

High Temperature Operation

 70ºC, 48hrs --
Low Temperature Operation -20 ºC, 48hrs Non-condensing

Operating Temperature/ Humidity

 60ºC/90%RH, 500hrs Non-condensing
Thermal Shock

-30 ~ 80℃, 60 mins/cycle, total

48 cycles

 --

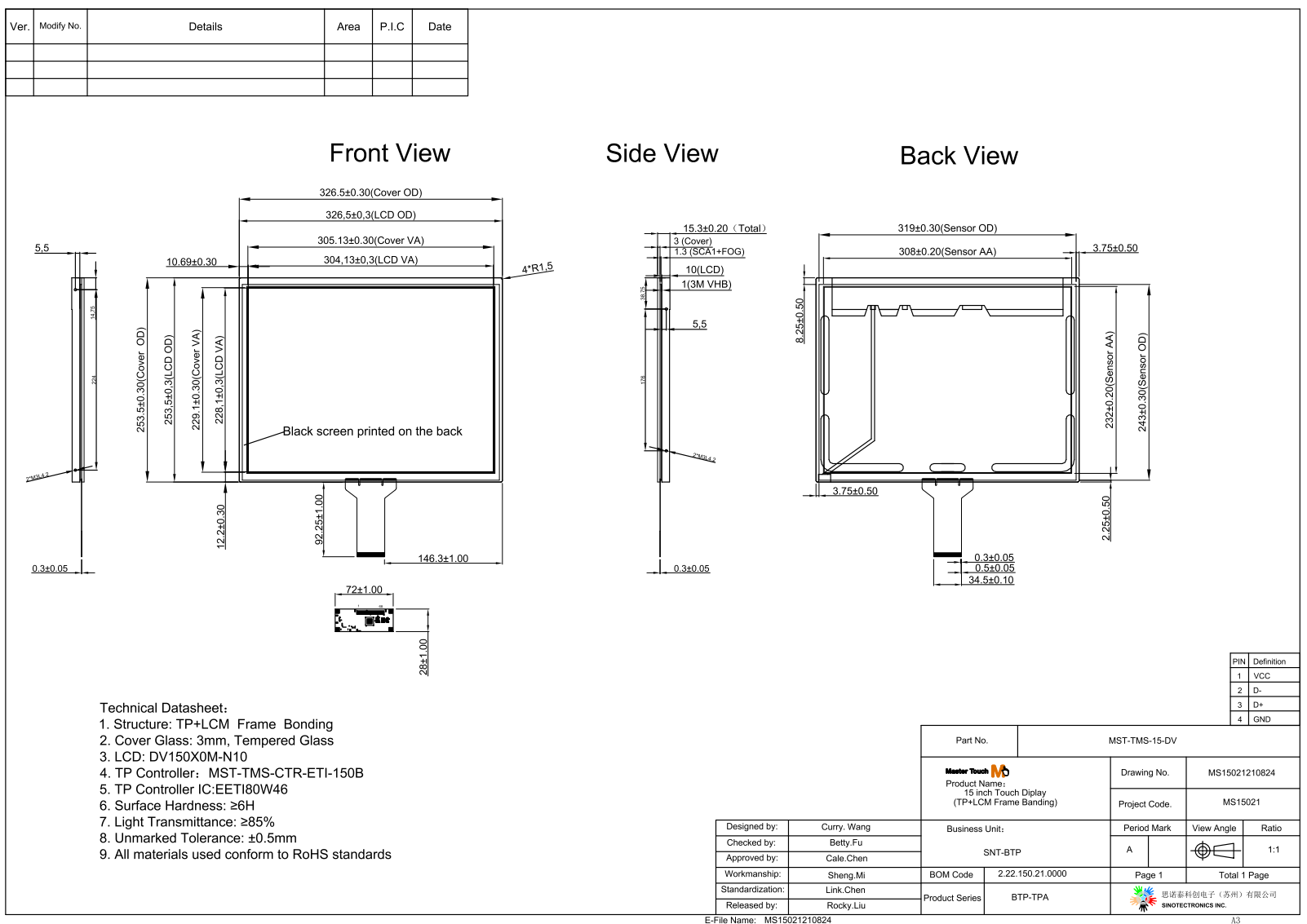

4. Drawing

15.3mm Thick 3.3V EETI IC 15'' Touch Panel Bonding With LCD

5. Details

15.3mm Thick 3.3V EETI IC 15'' Touch Panel Bonding With LCD

6. Inspection

Equipment/materials: light box, ion fan, humidifier, film card, alcohol/ethyl acetate, finger cover, dust-free cloth, Vernier/digital caliper.

Inspection environment: 30cm ± 5cm from the product, temperature: 22 ± 2 ℃; humidity: 40% ~ 70% RH; cleanliness: Level 10000.

Inspection angle: vertical rotation angle: ± 30 °, from top to bottom; horizontal rotation angle: ± 30 °, from left to right.

Inspection illuminance: fluorescent lamp inspection area illuminance: 150

0-1800lux; table lamp inspection area illuminance: 1500-1800lux; It is convenient for internal uniform illumination requirements.

Background color: Black/white.

Inspection time: the inspection time of one piece of product shall not exceed 15 seconds.
